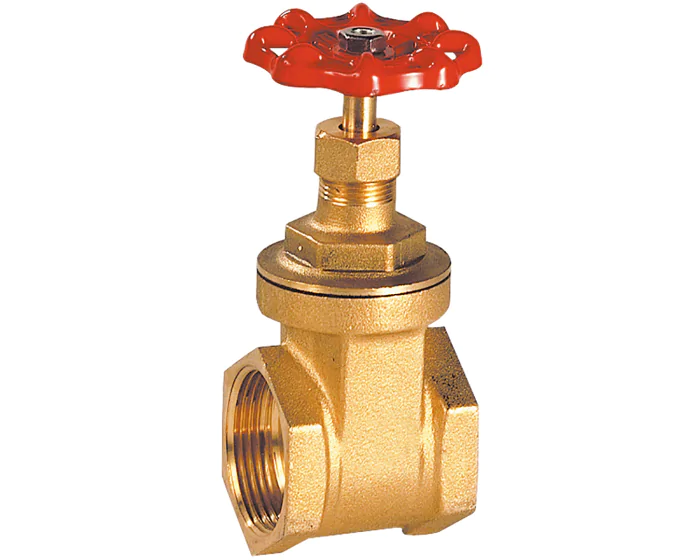

Brass gate valve 102 BSP with CW617N brass body, brass gate, and EPDM gasket. Full bore, PN16, female/female BSP fitting for water networks. Operates from -10°C to 80°C, ensuring reliable shut-off and flow control.
| Specification | Value |
|---|---|
| DN inches NPS | 1/4'' |
| Bonnet material | Brass CW617N |
| Thread standard | ISO 228-1 |
| Bonnet | Screwed |
| Opening device | Handwheel |
| Application | Water supply and distribution network |
| Shaft/stem matérial | Brass CW614N |
| DN | DN8 - 1/4'' |
| Face to Face (mm) | 33.0 |
| Sealing | Metal / Metal |
| Gasket | EPDM |
| Kv (m³/h) | 9.2 |
| Body material | Brass CW617N |
| Gate material | Brass CW617N |
| Bore | Full |
| Packing gland | Yes |
| PS (bar) | 20 |
| Connections | BSP FF |
| Seats | Brass CW617N |
| TS max (°C) | 80 |
| TS min (°C) | -10 |
| Warranty period | 2 years |
| Type of stem | Non-rising |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP FF Brass CW617N Full 1/4'' | 102002 | S1010357 |
€6.79
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 3/8'' | 102003 | S1010358 |
€6.79
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 1/2'' | 102004 | S1010359 |
€7.46
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 3/4'' | 102005 | S1010360 |
€10.16
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 1'' | 102006 | S1010361 |
€13.49
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 1''1/4 | 102007 | S1010362 |
€19.86
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 1''1/2 | 102008 | S1010363 |
€24.94
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 2'' | 102009 | S1010364 |
€37.91
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 2''1/2 | 102010 | S1010365 |
€55.99
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 3'' | 102011 | S1010366 |
€69.39
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 4'' | 102012 | S1010367 |
€126.80
(excl. btw)
|
add to cart |
